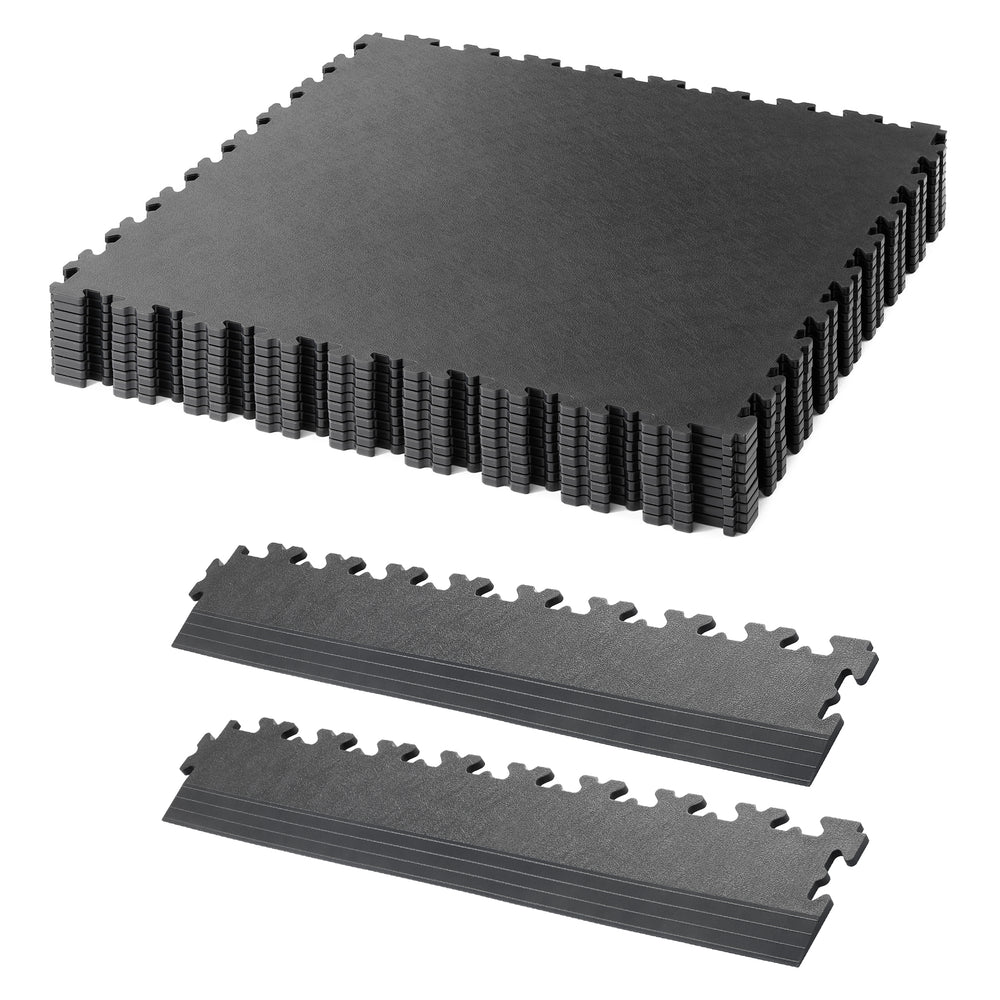

X Joint 45m² Large Garage Bundle in Graphite + FREE RAMPS
Your Bundle, Your Way...
Start with a bundle like this one then make it your own by adding additional tiles and ramps to suit your requirements.
Please scroll down to view technical information about this product.
View our Installation Guide here.
When the joints are interlocked the X Joint tile will cover an area of 497mm x 497mm which means four tiles cover 0.988m². With the ramps this bundle will cover 45m². Please consider including an allowance for cutting / wastage when you order; we recommend that when measuring your garage you always round up your measurements to the nearest 0.5m (i.e. if the width of your garage is 3.3m round up your measurement to 3.5m to allow for the cutting of the tiles up against the walls). As a rough guide it is always sensible to order an extra 4 to 8% to allow for offcuts or wastage.
Delivery Information
Your order will arrive at your home within 3-5 working days. Due to our demanding production schedule we can not always guarantee that this product is available. If your order is not available we will do our best to manufacture it within 3-5 days and keep you informed.
Dimensions & Specifications
Thickness: 7.44 mm
Weight: 414 kg
Material: Virgin PVC
Join Type: X Joint
Connects With: X Joint Only
Slip Resistance: R10 Slip Resistant
Fire Rating: Bfl-S1 - Does not support combustion
Hardness: 89-92 Shore A
Important Information - Read Before Purchasing
We recommend that you read the following information before purchasing. Click the button below to view the information.
Do not attempt to use these tiles outdoors. If areas of your floor are exposed to direct sunlight or fluctuating temperatures adhesive may be required. Call us if you are not sure about your application.
If you order over 10m2 of tiles, your goods will arrive on a pallet which means it could arrive on an articulated lorry. Please advise if this is a problem when placing your order (in the notes section at the checkout)
It is possible that certain rubber tyres and wheels may stain the tile (and many other types of flooring). This is a result of a chemical reaction that occurs between the anti-oxidant that is used in some rubbers and the plasticizer used in vinyl. The stain/reaction is brown in colour so is less visible in certain colours of tile (dark grey, graphite and black).
Unfortunately, this is a problem that flooring industry can not solve any easier than the tyre industry can make tyres without the use of these chemicals. Because we know the problem is random and we are unable to fully prevent these occasions, GFTC makes no warranties as to potential tyre staining and will not be held liable for any claims made where tyre staining occurs.
